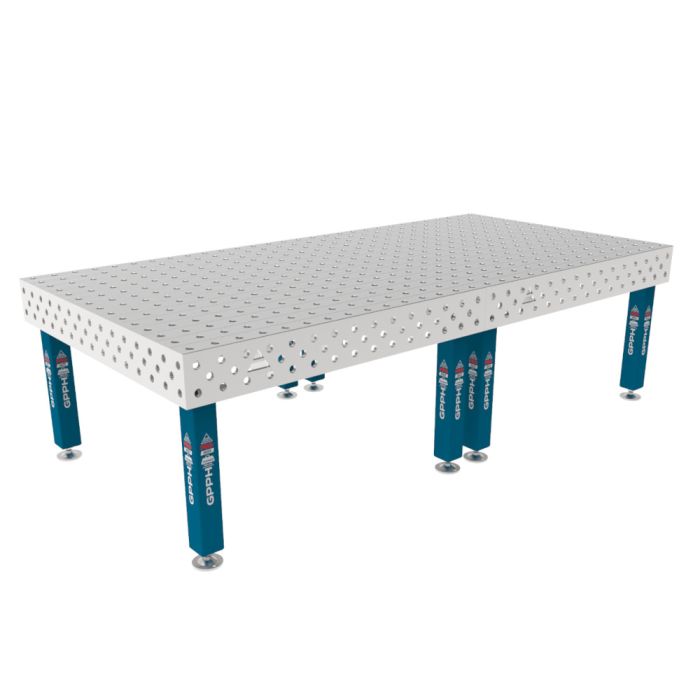

INOX Stainless Steel Welding Table PRO – 3M x 1.48M

Stainless welding tables from the INOX series are made of 1.4301-grade stainless steel, which is characterized by better electrical conductivity than that of ordinary steel – electrical resistance at temperature 20°C = 0.73 (Ω mm²)/m. You can use them where the precise welding of stainless steel is required. Stainless welding tables are characterized by a high quality of execution and wear resistance. They are made of stainless steel with a high content of chromium which gives them durability and corrosion resistance. GPPH INOX welding tables ensure that there is no fear that iron will precipitate and that corrosion spots will be formed while welding stainless steel structures. By using the INOX tables, your structures will be made precisely and accurately without any corrections. They ensure ergonomic and effective work while maintaining the high quality and repeatability of the executed structures. Moreover, the INOX tables series is also available in the version with legs on foot or wheels -the given table can be perfectly adapted to your needs.

• Table top thickness: 15MM
• Slot diameter: 16MM or 28MM
• Grid: 100MM x 100M squares (available in 50MM x 50MM grid and diagonal grid upon request)

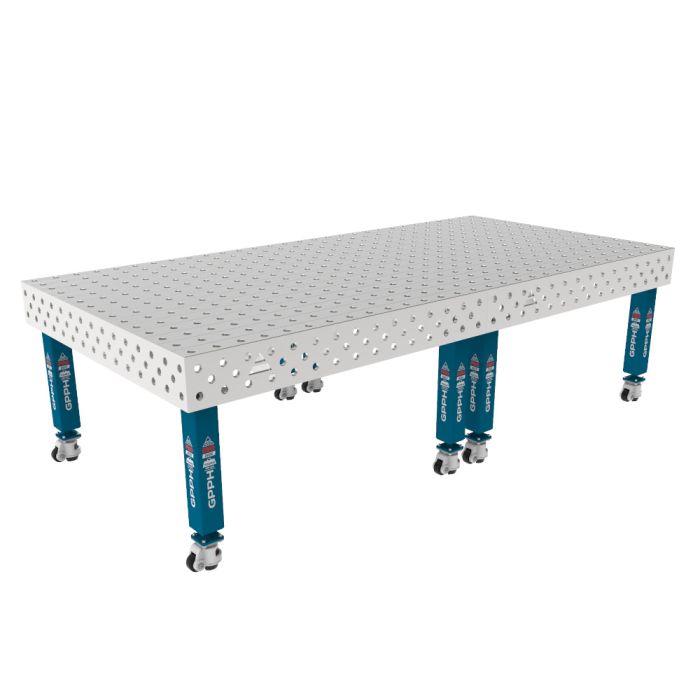

Each worktop in the INOX version has an engraved pitch. In addition, as in the case of conventional welding tables, the worktops have robust and dense ribbing, which affects the achievement of a perfectly flat working surface (tolerance on flatness ±0.3 mm on the whole dimension of the worktop). The ribs are arranged every 400 mm on average. The robust and rigid structure of the worktop ensures maximum stability during operation and protects against deformation. The height of the sidewalls is 200 mm and they are made with a deviation tolerance of ±0.3°.

On the INOX series welding tables with PRO worktops, you will use the PRO chamfered tools, while for the PLUS series worktops – the PLUS series tools. For works on the INOX tables, you may use the standard GPPH tools because they are powder coated. You will be able to execute precisely each flat and three-dimensional structure significantly faster using our tools!
