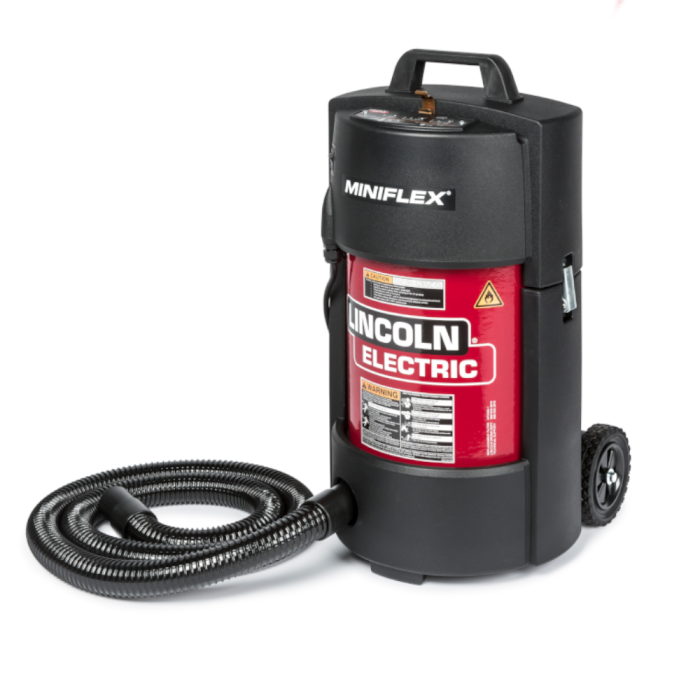

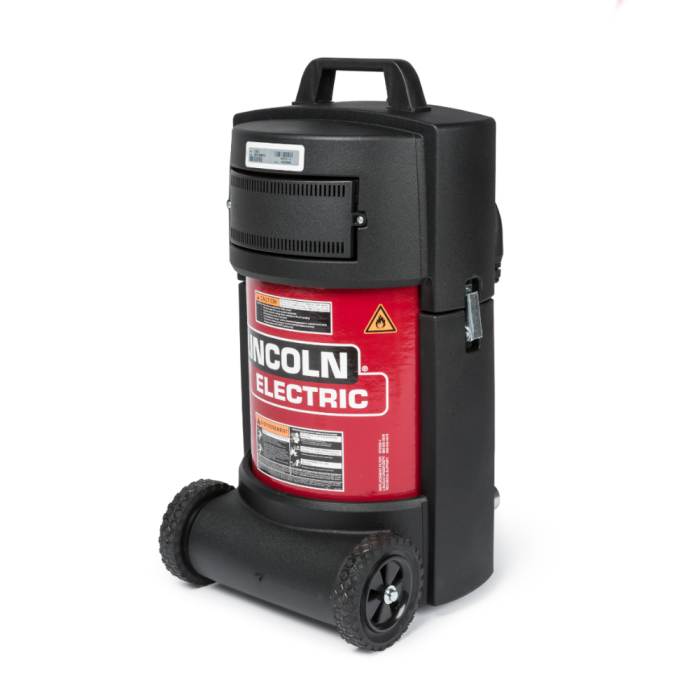

Lincoln Electric MiniFlex High Vacuum Welding Fume Extractor

MINIFLEX is a portable high-vacuum extraction unit with filtration used for extracting welding fumes during maintenance operations or non-industrial production

Features

• Combined with a nearby capture nozzle or a fume extraction torch of 250 A maximum
• Maximum flow rate – 160 m³/h with 1 motor (1000 W) – 230 m³/h with 2 motors (2 x 1000 W)
• Diameter of connection to extraction: 45 mm.
• Fine cellulose filter, class H10 – Filter surface area 12 m²
• HEPA filter – Class H12
• Metal pre-filter

What’s Included

• Base Unit
• Fine cellulose filter 12 m² Class H10
• Hepa filter class H12
• Hose Ø45 mm – 2
• 5 m length
