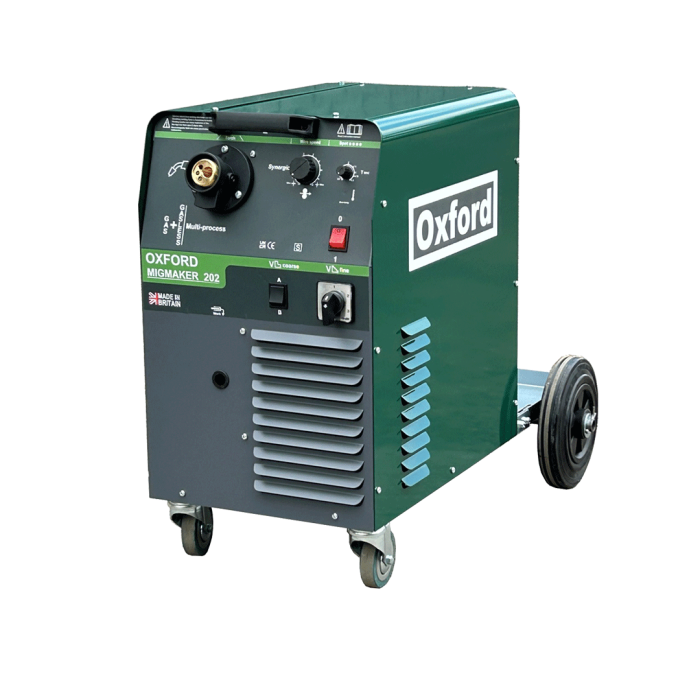

Oxford MIGMAKER 202 Traditional Compact MIG Welder – single phase

The Oxford MIGMAKER 201 is a single phase 200A step regulated MIG welder made by British welding machine manufacturer Oxford. This is the most popular machine in the Oxford range and is ideal for automotive work, sheet metal fabrication, and DIY use. It now comes with reverse polarity as standard, allowing for the use of gasless wire if needed.

It welds materials up to 5mm thick and operates at 3/4 power using a 13A domestic plug. The welder is supplied with a 3m MIG torch and a single stage 2 gauge argon regulator.

The Oxford MIGMAKER features a copper wound transformer, rugged switch gear, an over-rated rectifier, and fan cooling, all housed in a sturdy 2mm steel chassis. Transformer-based machines are preferred by some for their long life spans and reliability. The MIGMAKER range is Oxford’s most popular model. A high torque cast aluminum wire drive system with a 70W drive motor ensures smooth wire feeding hour after hour.

Oxford takes pride in handcrafting each machine using the best components sourced in the UK whenever possible. Updated in 2023, the MIGMAKER 201 now complies with BS IEC60974-6 for improved energy efficiency. The transformers are highly energy-efficient, and the machine draws just 25 watts on standby.

Main Features:

• British Made
• Heavy duty wire spool holder for 15kg or 5kg MIG wire reels with a mechanical brake to prevent overrun
• Robust gas bottle carrier, holder, and chain suitable for all bottle sizes
• MIG welding capabilities for Aluminum, mild steel, and stainless steel
• Easy MIG wire loading – accessible just under the lid
• Oxford Cap+ technology for very smooth welding conditions on all materials
• Smoothing capacitors and a unique choke design for smooth welding characteristics with minimal spatter and easy arc starting
• Infinitely variable wire feed speed with semi-synergic control, built-in motor brake, and burn back
• All metal geared wire drive system ensures perfect wire feeding of all sizes and types of wire
• Simple PCB – robust for everyday use, controlling all functions including motor speed variability, motor braking, and burn back control
• Good range of carefully selected voltage steps for perfect settings on every job
• Minimum amperage of 20A for welding as thin as needed
• Efficient Oxford design for low power consumption and reduced running costs
• Supplied on wheels and casters for easy maneuverability
• Industry-standard euro connector with all-brass construction
• Complies with BS IEC60974-6, BS EN50199, RoHS directive, and CE marked

Additional Options:

• Upgrade to include a spot timer function
• Upgrade to include digital meters

Guarantees:

• 2-year warranty on all items (except torch and regulator)
• 5-year main transformer warranty
• 20-year minimum guarantee of spares availability

There has never been a better time to buy British! With the weak British £, Oxford machines are more competitive than any similar quality imported machine. With Oxford’s long-term support, buying British is the wise choice. More output power from a 230V supply, lower input power, better duty cycles, better long-term support, better pricing – all made right here in the UK!

Rugged, reliable, compact MIG machines with simple, no-nonsense controls. Great welding performance, simple build, and easy maintenance – everything you want from a machine designed to weld and nothing you don’t. Thousands sold over the last few years!

Size: approximately 330mm W + front castor support & rear wheels, 840mm L x 650mm H.
