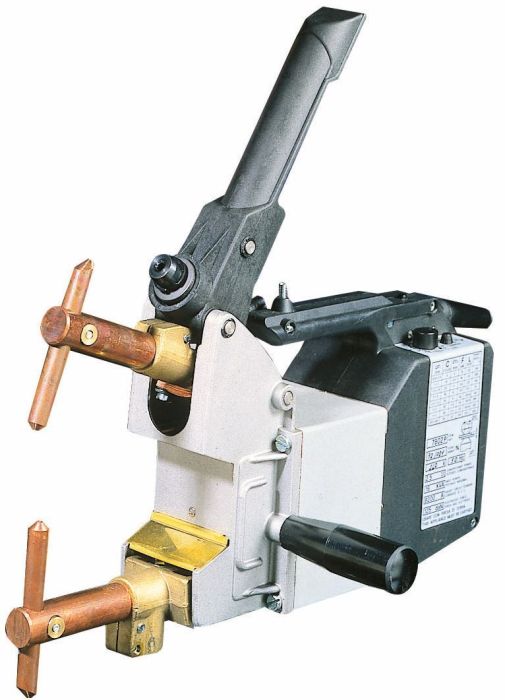

Tecna 2.5kVA Hand Spot Welder 230V

Tecna 2.5kVA Hand Spot Welder 230V

This product is a spot welder by Tecna. This auto body spot welder has a rating of 2.5kVA.  Tecna portable spot welder(s) are lightweight professional. Tecna’s automotive spot welder is available in 230V. There is a large choice of Tecna spot welder arms and electrodes to choose from.

Key Features

• Versatile portable spot welder for auto body repair shops and maintenance shops
• Synchronous built-in electronic timer with SCR from 2-65 cycles
• Compensation circuit starts the timer only when there is a proper passage of current which enables to perform on oxidised sheets, on surfaces with paint residues or on black sheets
• Current control with phase shift adjustment to carry out difficult welds, on very thin thickness on rods with reduced diameter, on stainless steel sheet and similar
• All transformers are coated with F class insulation metal
• Tests are made using 4000V
• Force adjustment with scale daN
• Additional arm couplings to provide larger opening between arms
• Supplied complete with 125MM arms
• Large choice of arms and electrodes
• Pulsation weld time control
• Cos fi control

Technical Data

• Input Voltage – 230V
• Delayed Fuses – 16A
• Secondary No Load Voltage – 2.5V
• Maximum Welding Power – 16kVA
• Warranty – 12 Months
• Standard Arms Throat Depth – 125MM
• Noise production – <70 dBA
• Net Weight with Arms – 11KG
