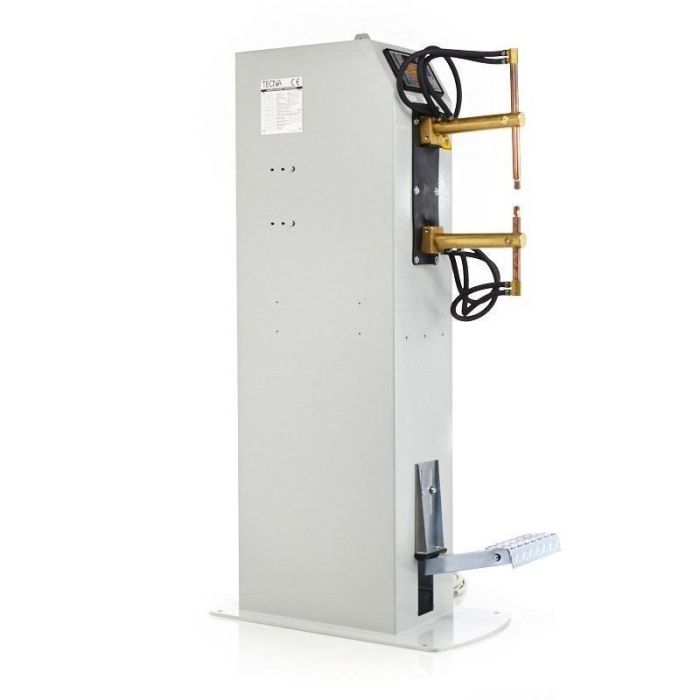

Tecna Rocker Arm Column 16KVA Pedal Operated Spot Welder 400V

Key Features

• Adjustable arms to allow better working flexibility
• Chrome-copper electrode holders for long life and heavy duty service, designed for straight and angled fitting
• Adjustable electrode stroke
• Epoxy resin coated transformer
• Water cooled transformer, arms and electrodes
• Microprocessor Control Unit TECNA TE101
• Adjustable eletrode force, a microswitch starts the welding cycle when the desired pre-set value is reached
• Foot pedal is adjustable in length
• (Demonstrations available)

Technical Specifications

• Input Voltage – 400V
• Power @ 50% Duty Cycle – 16kVA
• Secondary No Load Voltage –  3.4V
• Maximum Welding Power – 35kVA
• Warranty – 12 Months
• Arm Diameter – 36MM
• Electrode Holder Diameter – 19MM
• Noise Production – <70 dBA
