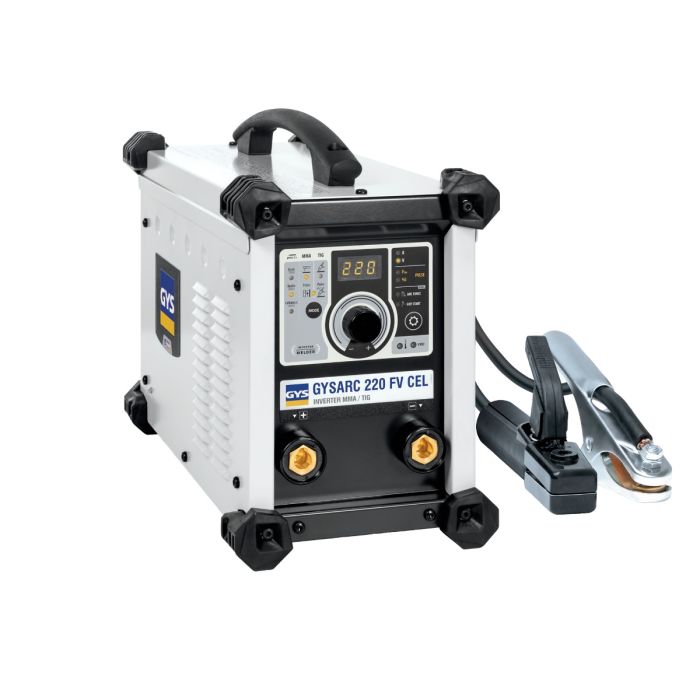

GYS GYSARC 220 FV CEL Arc MMA Welder

The GYSARC 220 FV CEL is a flexible voltage inverter based MMA welding machine made to meet the professional welders requirements. It provides 220 amps of welding current in a compact, lightweight case.

Pipe welders around the world utilise cellulosic welding electrodes, such as the 6010 or 8010-P1. These rods cannot be run on standard arc MMA welding machines; they require a higher open circuit voltage than standard basic or rutile rods. Therefore, GYS have designed this machine to be able to run cellulosic rods without any issue. Thus, this makes the GYSARC 220 FV CEL the welding machine of choice for pipe welding companies across the world.

In addition to this the machine boasts a pulse DC lift TIG capability for welding thin wall mild and stainless steel (0.3MM and upwards).

Key features:

• Pulse MMA for welding in the vertical up position with ease
• Flexible voltage for welding on unstable electrical inputs
• Generator friendly for use in the field
• Adjustable hot start and arc force to set your weld exactly how you like it
• Voltage reduction device to make the machine extra secure it certain environments such as mines, chemical plants & shipyards
• Anti dust corridor to keep harmful dust away from integral components
• Over voltage protection

Technical specifications:

• Input voltage: 110V/230V
• Input current: 16A 230V / 32A 110V
• Output current range: 10A – 220A 230V / 10A – 120A 110V
• Duty cycle: 20% at 130A 230V / 30% at 90A 110V
• Dimensions: 420MM x 210MM x 35MM
• Weight: 10.5KG
• Insulation class: IP23
• Generator KVA requirement: 12.5KVA
