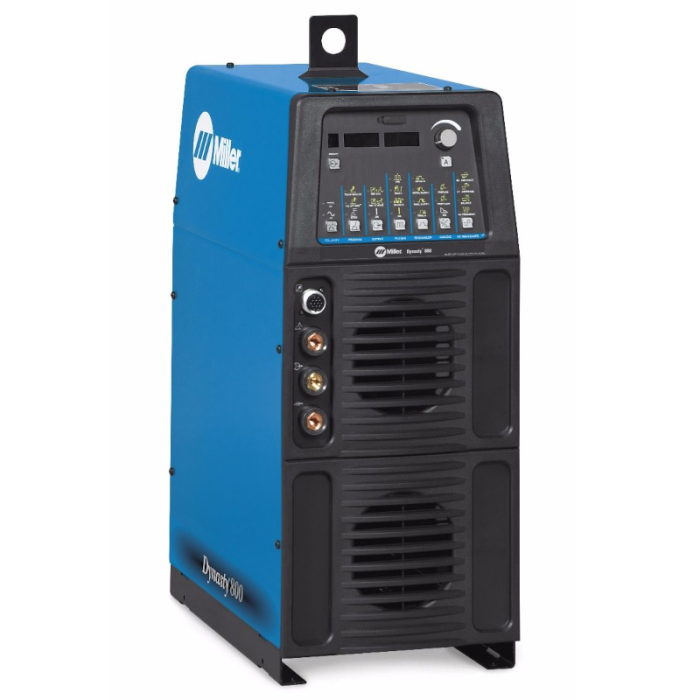

Miller Dynasty 800 AC/DC Pulse TIG Welder – 3 Phase

£17,560.00

Buy Miller Dynasty 800 AC/DC Pulse TIG Welder with 800A output, pulse TIG, Auto-Line, and 3-phase power.

Categories: TIG Welders, Welding Equipments

Description
Reviews (0)

Features

Auto-LineTM Allows for any input voltage hookup (380-575 V) with no manual linking, providing convenience in any job setting.
Water Cooled
Blue Lightning Arc Starter The Finest solid state Arc Start in the Industry!
Meter Calibration allows meters to be calibrated for certification.
Programmable start parameters allow independent starting conditions based on process and memory selections (amperage, time and polarity).
Program memory features 9 independent program memories that maintain/save your parameters.
Auto – Postflow calculates the length of postflow time based on the amperage setting.

Specifications

Input Power – 380V – 575V 3 Phase
Amps Input @ Rated Load Output – 39A
Amperage range – 5A – 700A
Max open circuit voltage – 75 VDC
Dimensions – H: 876MM W: 349MM D: 539MM
Weight – 90KG
