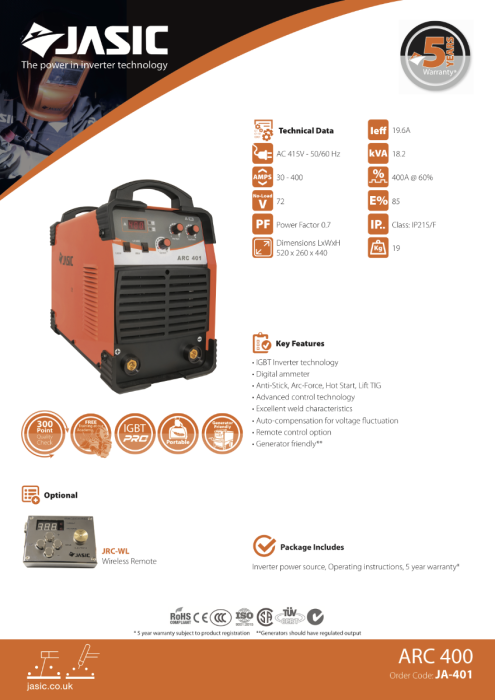

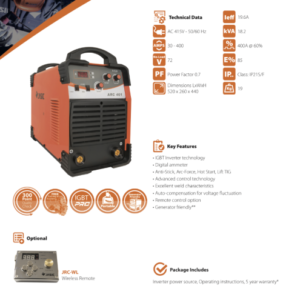

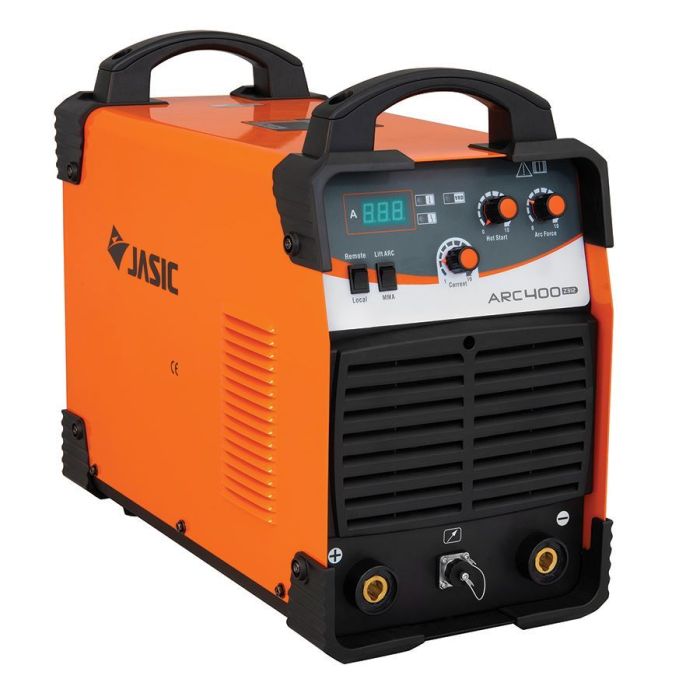

Jasic Arc 400 Welder – 3 Phase

Key Features

• IGBT Inverter technology – for the professional user
• Digital amp and voltmeter
• Anti stick, arc force, hot start, DC Lift TIG
• Advanced control technology
• Compact size, lightweight and modern design
• Excellent weld characteristics
• Remote control option
• Auto-compensation for voltage fluctuation
• Generator friendly

Technical Specifications

• Input Voltage – 400V 3 Phase
• Input Current –  40A
• Amperage Range – 20A – 400A
• No Load Voltage – 65V
• Duty Cycle – 400A @ 60%
• Protection/Insulation Class – IP21S/F
• Dimensions – 540MM X 275MM X 510MM
• Weight of Machine – 31KG
