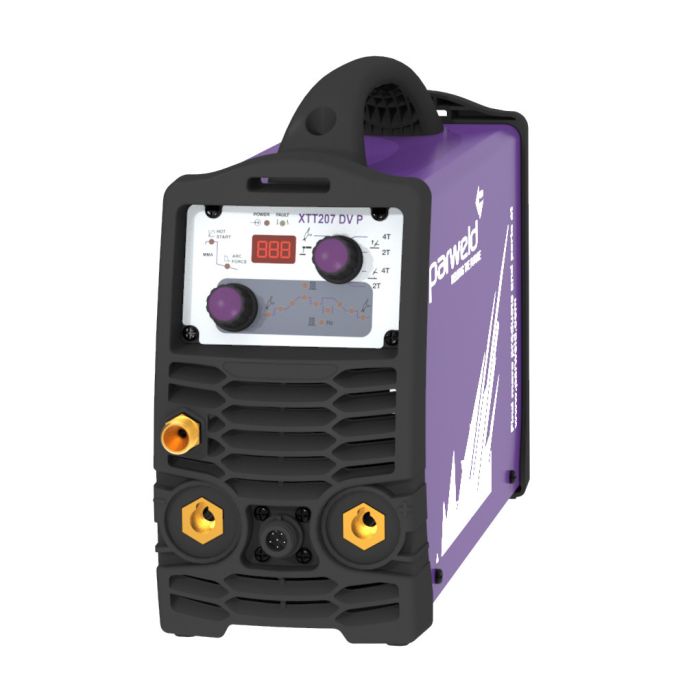

Parweld XTT 207DV 110V/240V Pulse DC TIG Inverter

Technical Information

• Output Current – 5-200 A DC
• Input Voltage – 110V/230V 1P
• Input Current Max – 32/16A
• Duty Cycle – 200A @ 35% (160A @40% on 110V)
• Up Slope Function – 0-5S
• Down Slope Function – 0-5s
• Pre-flow Function – 0-1s
• Post Flow Function – 3-10s
• Minimum Fuse Rating – 32A/16A
• KVA – 3.6
• Enclosure Protection – IP23S
• Dimensions – 376 x 130 x 240
• Weight – 8.0KG
