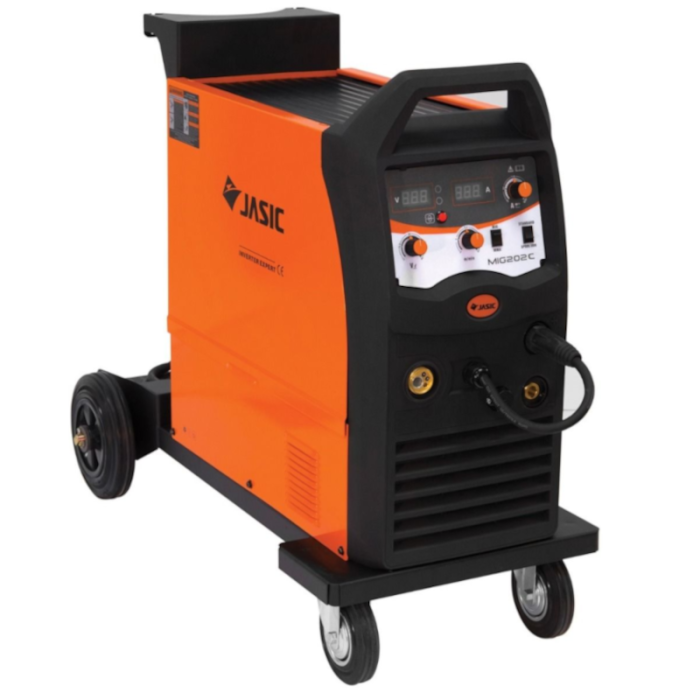

The Jasic MIG 202C is an ideal workshop-based 200-amp MIG welder that can take a 15KG wire reel. It offers a simple control panel and digital display for welding parameters. Its duty cycle of 35% at 200 amps allows for relatively consistent welding of 3mm-4 mm material. The machine’s capability to use 0.6MM, 0.8MM & 1MM MIG wire means it is suitable for welding thin material & thick material up to 5MM/6MM. Jasic’s 202C boasts a super smooth welding arc, burn back control & overall high quality build.
The warranty on the Jasic MIG 202C is 5 years once registered with Wilkinson Star UK.
Jasic MIG 202C Key Features
- 200 amp output on a 230V electrical input
- High 35% duty cycle at 200 amps
- Digital amperage and voltage display
- Stable and reliable welding arc
- Optional spool gun interface for aluminium welding
- Wire inching feature to preserve shielding gas
- 0.6MM – 1MM wire diameter capacity
- 15KG wire reel capacity
- Multi-process capabilities
Technical Specifications
- Input Voltage – 230V 1 Phase
- Input Current – 16A
- Amperage Range – 30A – 200A
- No Load Voltage – 52V
- Duty Cycle – 200A @ 35%
- Max Wire Spool Size – 15KG (300MM)
- Efficiency – 85%
- Protection/Insulation Class – IP21S/F
- Dimensions – 900MM X 450MM X 755MM
- Weight – 46KG
You can find a link to Jasic UK’s information page for this machine here.
The standard JM-202C package includes a 3M Starparts Titanium MB15 MIG torch, G-Tech gas regulator, earth lead with clamp & gas hose with connections. However, if you’d like a more complete package, then suitable ‘Ready to Weld Packages’ for this machine can be found below:
- Standard ‘Ready to Weld’ MB15 5KG Package
- Intermediate ‘Ready to Weld’ MB15 5KG Package
- Expert ‘Ready to Weld’ MB15 5KG Package
