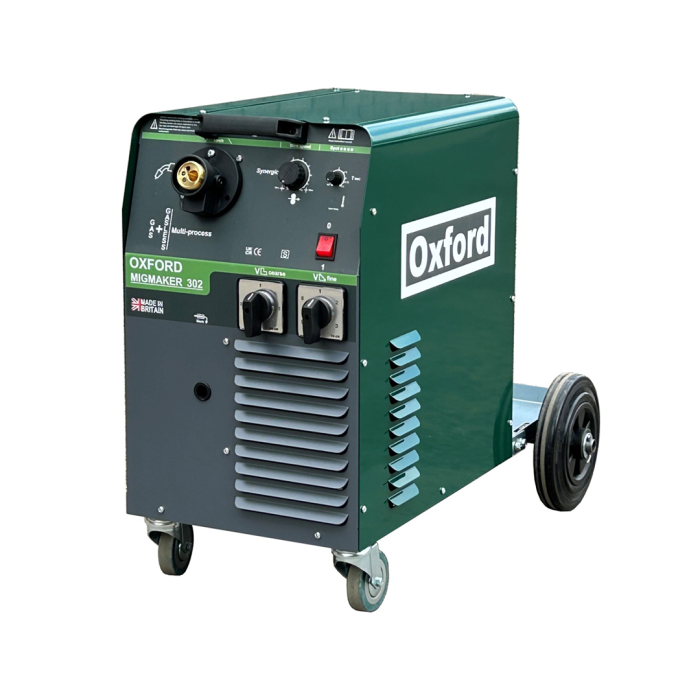

Oxford MIGMAKER 302 Traditional Compact MIG Welder – single phase

The Oxford MIGMAKER 301 is a single-phase 300A step-regulated MIG welder from British manufacturer Oxford. Updated for 2023, the MIGMAKER 301 retains its robust British build quality while featuring a more electrically efficient transformer to meet the latest regulations. Reverse polarity is now standard, allowing for the use of gasless wire when needed.

As the largest transformer MIG welder in Oxford’s range, the MIGMAKER 301 can weld materials up to 10mm thick and also handles very thin materials with a minimum amperage of just 20A. It offers 16 voltage steps for precise output power adjustment and can even run from a 13A plug for lighter tasks.

This popular model is great for automotive work, gates and railings, and light to medium agricultural applications. It comes supplied with a 3m MIG torch and a single-stage 2-gauge argon regulator.

Built with a copper-wound transformer, rugged switch gear, an over-rated rectifier, and fan cooling, the Oxford MIGMAKER is housed in a durable 2mm steel chassis. Transformer-based machines are known for their long lifespan and reliability. The MIGMAKER range is Oxford’s most popular model, featuring a high torque cast aluminum wire drive system with a 70W drive motor for consistent wire feeding.

Oxford takes pride in handcrafting each machine with the best components sourced in the UK whenever possible. Updated in 2023, the MIGMAKER 301 complies with BS IEC60974-6 for greater energy efficiency. The transformers are now extremely energy-efficient, drawing just 25 watts on standby.

Main Features:

• British Made
• Heavy-duty wire spool holder for 15kg or 5kg MIG wire reels with a mechanical brake to prevent overrun
• Robust gas bottle carrier, holder, and chain suitable for all bottle sizes
• MIG welding capabilities for Aluminum, mild steel, and stainless steel
• Easy MIG wire loading – accessible just under the lid
• Oxford Cap+ technology for very smooth weld conditions on all materials
• Infinitely variable wire feed speed with semi-synergic control, built-in motor brake, and burn back
• All-metal geared wire drive system ensures perfect wire feeding of all sizes and types of wire
• Simple PCB – robust for everyday use, controlling all functions including motor speed variability, motor braking, and burn back control
• Good range of carefully selected voltage steps for perfect settings on every job
• Minimum amperage of 20A for welding as thin as needed
• Efficient Oxford design for low power consumption and reduced running costs
• Supplied on wheels and casters for easy maneuverability
• Industry-standard euro connector with all-brass construction
• Complies with BS IEC60974-6, BS EN50199, RoHS directive, and CE marked

Additional Options:

• Upgrade to include a spot timer function
• Upgrade to include digital meters
• Longer mains cable
• Trigger latching

Guarantees:

• 2-year warranty on all items (except torch and regulator)
• 5-year main transformer warranty
• 20-year minimum guarantee of spares availability

There has never been a better time to buy British! With the weak British £, Oxford machines are more competitive than any similar quality imported machine. With Oxford’s long-term support, buying British is the wise choice. More output power from a 230V supply, lower input power, better duty cycles, better long-term support, better pricing – all made right here in the UK!

Rugged, reliable, compact MIG machines with simple, no-nonsense controls. Great welding performance, simple build, and easy maintenance – everything you want from a machine designed to weld and nothing you don’t. Thousands sold over the last few years!
