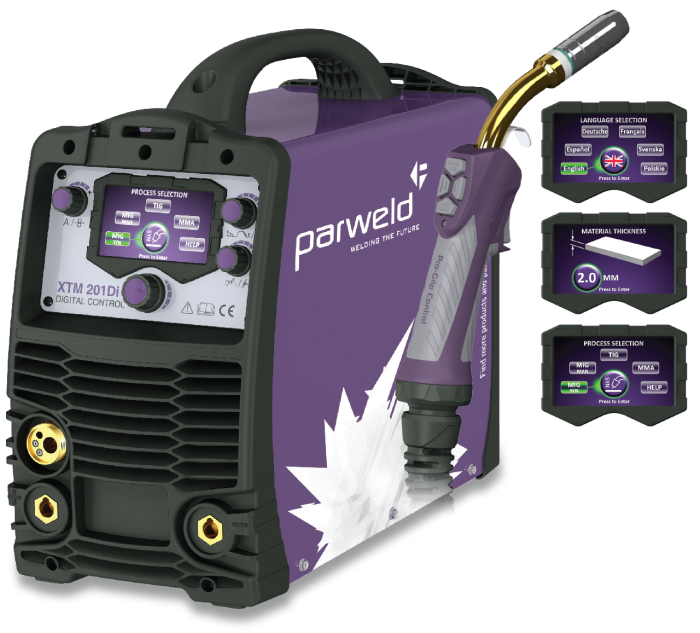

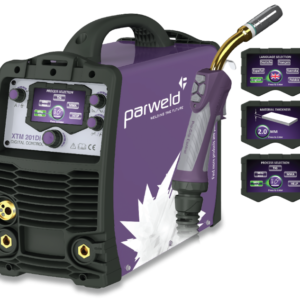

Parweld XTM 201DI Synergic Welder

NEW Dual Voltage multi-process MIG welder with digital interface, ideal for maintenance and multi-process applications

Technical Information

• Style – Portable
• Machine Type – Inverter MIG/TIG/MMA
• Wire feed speed – 3.5 – 10m/min
• Voltage range – MIG 14.5-24V, TIG 10.4-18V, MMA 20.4-28V
• Spool size – 100mm and 200mm (1-5kg)
• Feed box – 2 roll
• Wire size – 0.6, 0.8, 0.9, 1.0 (0.8/1.0 inc)
• Duty cycle – 200A @ 25% (230V)
• Input voltage – 110V/230V
• Maximum current – 140A/200A
• Minimum current – 30A (MIG) 10A (TIG)
• Input current (Max) – 32A/26A
• Fuse rating – 32A/26A
• KVA – 3.7
• Enclosure protection – IP23S
• Dimensions (mm) – 490 x 220 x 430
• Weight – 17.5KG
• Languages – English, Espanol, Deutsche, Francais, Svenska, Polskie
