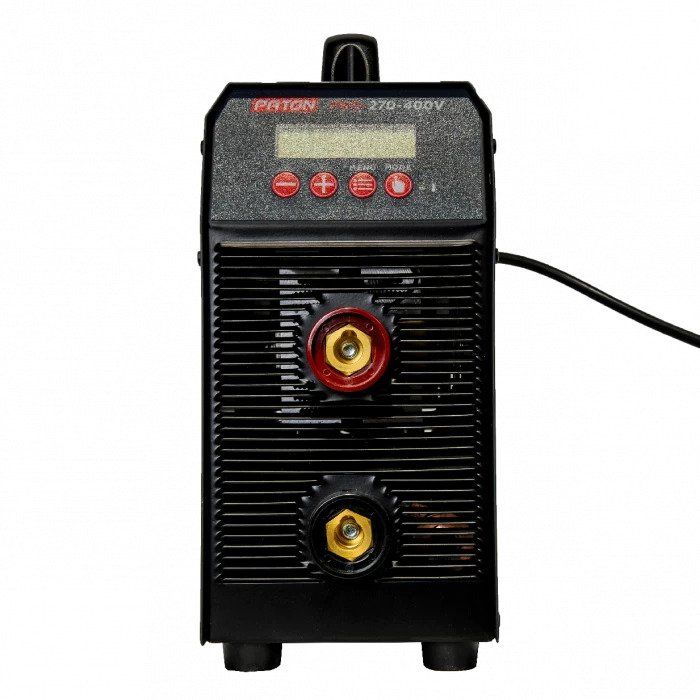

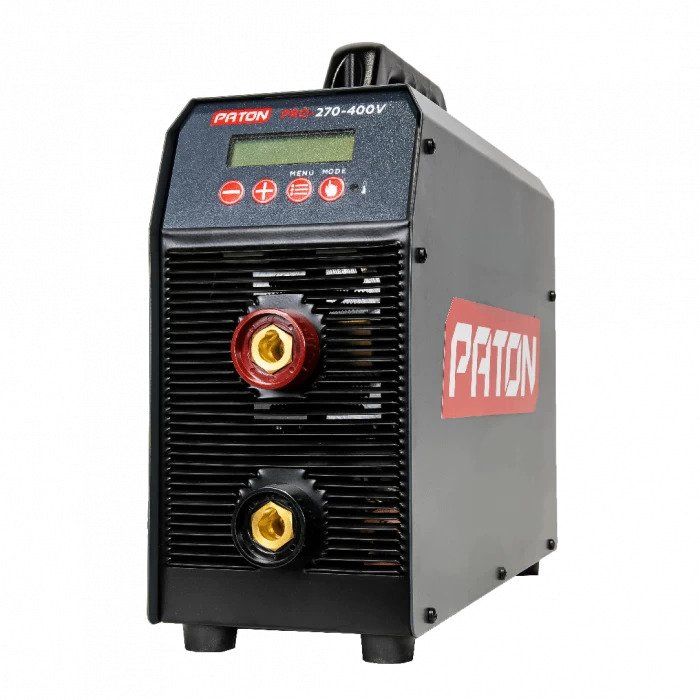

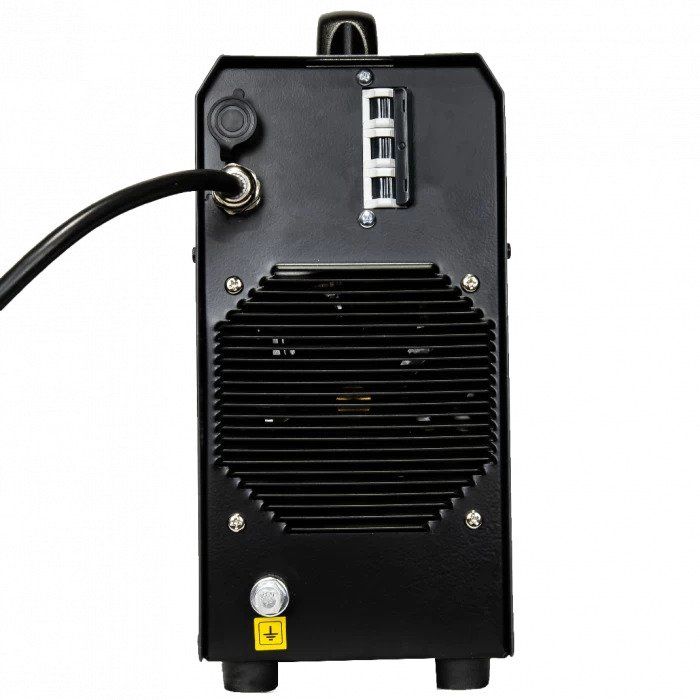

Paton Pro 270 MMA Welder – 400V

The Paton PRO 270 is a DC output arc welder with capability to do pulse MMA, pulse DC lift TIG & Pulse MIG. Pulse DC lift TIG and pulse MIG capabilities will require optional accessories but these can always be added at a later date. The outstanding build quality of this machine means it is perfect for being used in the toughest conditions. This is a great high quality, European made alternative to the generally available machines on the market today. Outstanding features on this machine include:

• Pulse welding function
• Protection against input voltage surges
• Adaptive fan speed based on component temperature
• Very reliable in dusty and humid environments due to the microelectronic system being housed in a seperate chamber of robust construction
• Electronic components protected by high quality lacquer to ensure reliability of components
• IGBT based technology

Technical Specifications

• Input supply – 400V 16A
• Output current – 14A – 270A
• MMA electrode capability – 1.6MM – 6MM
• Required generator KVA – 8.6KVA (w/ AVR)
• Dimensions – 144MM x 388MM x 332MM
• Weight – 10.5KG
• Protection class – IP33

The standard PRO 270 package includes a 3M earth lead with clamp, 3M arc welding lead with Abicor Binzel electrode holder and carry case and shoulder strap.
