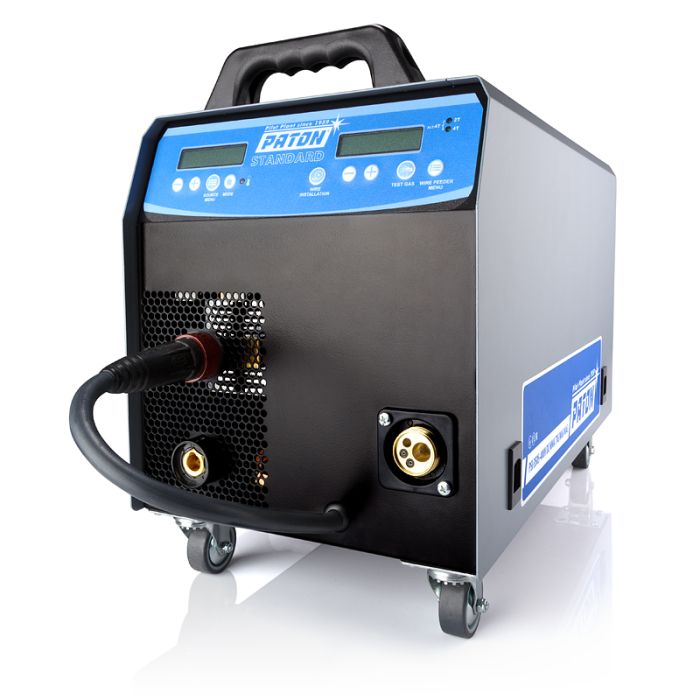

Paton PSI 350 Compact Pulse MIG Welder – 400V

The PATON PSI 350 is a 400V three-phase multi-process welder. It is capable of MIG, DC, lift, TIG, and MMA processes to a very high standard. It also boasts a pulse feature on all three of these welding processes. Its 350 amp output allows for welding of up to 15MM thick mild steel, whilst its very stable “low end” current allows for welding of very thin material. The Paton PSI 350 is capable of welding mild steel, stainless steel & aluminium (when the right wire feed rollers & torch liner are fitted). It boasts a reverse polarity function, therefore it is capable of welding with flux-cored & gasless welding wires. Overall, it is a great solution for maintenance, DIY, or light production welding.

The warranty on this machine is 3 years (managed by Welding Supplies Direct in the UK).

Key features include:

• Pulse capability on MIG, DC lift, TIG, and MMA processes
• 15KG maximum wire reel capacity
• Easy-to-use control panel
• Wire inch function
• Gas test function
• Lockable settings
• Upslope and downslope control
• Pre-gas and post-gas control
• Inductance control

Technical specifications

• Input supply – 400V 16A
• Maximum output current – 350A
• Duty cycle – 55% @ 350A / 100% @ 260A
• Wire feed speed range – 2M – 16M per minute
• MMA electrode capability – 1.6MM – 4MM
• Wire feeder – 4 roll
• Maximum wire feed reel capacity – 15KG
• Open circuit voltage – 12V (VRD) / 75V
• Required generator KVA – 8.6KVA (w/ AVR)
• Build standards: EN60205 – 1:2006 / EN60974 – 1:2012 / EN60974 – 10:2014
• Dimensions: 620MM x 310MM x 460MM
• Weight – ~28KG
• Protection class – IP21

You can find a link to Paton Ukraine’s information page for this machine here.

The standard PSI 350 package includes a 3M MB36 MIG torch, gas regulator, 3M earth lead with clamp, 3M arc welding lead with Abicor Binzel electrode holder, gas hose with connections, 0.6MM – 0.8MM V groove wire feeder rollers, and 1MM – 1.2MM V groove wire feed rollers. However, if you’d like a more complete package, then suitable ‘Ready to Weld Packages’ for this machine can be found below:

• Standard ‘Ready to Weld’ MB25 15KG Package
• Intermediate ‘Ready to Weld’ MB25 15KG Package
• Expert ‘Ready to Weld’ MB25 15KG Package

There is also an optional transportation trolley, which can be found here:

• Inverter Trolley
