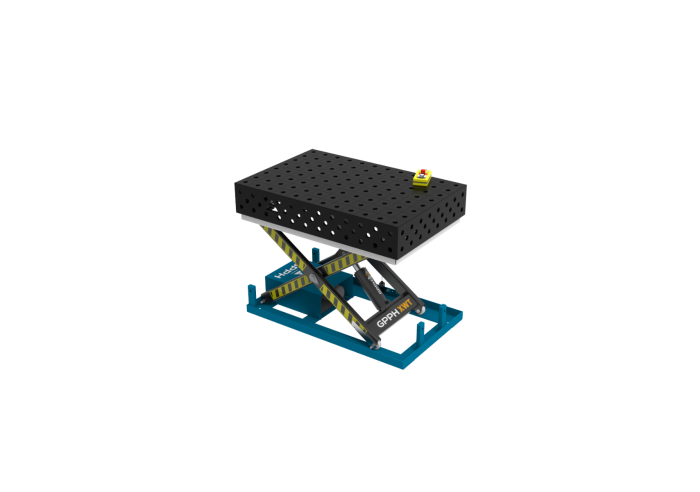

Hydraulic Lift Welding Table – 1.2M X 0.8M
Price range: £3,691.80 through £4,836.80
Details
- Overload valve to prevent lifting too heavy loads
- Safety valve to stop lowering in case of hydraulic line rupture
- Limit switches to prevent crushing injuries
- Input voltage: 400V
- Revolutions: 1400RPM
- Insulation class F
GPPH welding tables with hydraulic lift system are professional welding tables with automatic adjustment of table top height. With the GPPH hydraulic lift tables you are able to quickly and easily reach the ideal working height to ensure the highest levels of comfort whilst working.
Technical Specifications
- Maximum load capacity: 650KG
- Lift time (with load): 20-25 seconds
- Maximum table height: 1140MM
- Minimum table height: 435MM
- Dimenions of lifting base: 1240MM x 640MM
- Motor power: 1.1kW
- Input voltage: 400V
- Revolutions: 1400RPM
- Insulation class F
- Weight of table: PRO 416KG / PLUS 366KG / ECO 286KG
| Table Thickness | PRO(15MM), PLUS(12MM), ECO 8MM |
|---|---|
| Slot Diameter | 16MM (SYSTEM, 28MM (SYSTEM 28) |
