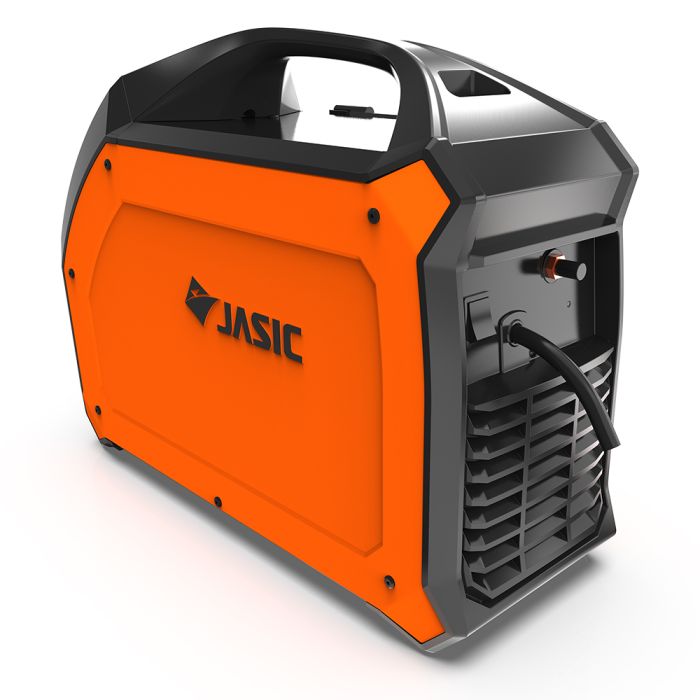

Jasic EVO 2.0 MIG 160 PFC Dual Voltage MIG Welder

Welding Supplies Direct is proud to showcase the new EVO 2.0 range from Jasic, released in May 2023. The new range inculcates rugged, ergonomic design, adaptable wide input voltage ranges, synergic parameter control & ClearVision technology to offer one of the most advanced yet affordable welding machine ranges available on the market.

Key features include:

• ClearVision technology: a beautiful, vivid colour digital display panel which makes setting parameters, even in the darkest areas, a breeze.
• Intelligent synergic control: Take the “messing” out of your parameter setting; with fully synergic control, you can eliminate guesswork and have accurate weld settings from the get-go.
• Adaptable wide input voltage range: Allows the machine to run on any input voltage between 95V & 265V, meaning this machine can be used in the workshop or on-site.
• Welding engineer mode: Allows access to sub-menu elements to check or change parameters.
• Smart DC lift TIG: Weld carbon and stainless steel with the built-in DC lift TIG capability (optional accessory TIG torch required).
• Consistent and efficient MIG spot welding performance.
• Flexible remote control solutions.
• Generator friendly.
• Auto sleep mode for improved energy efficiency.
• Compatible with digital control MIG torch, as well as spool gun.
• LED light inside the wire feed cabinet for improved vision.
• Fan on demand.
• Voltage reduction device for improved safety.
• Overcurrent and overheat protection.

The new EVO 2.0 from Jasic is subject to a testing procedure like no other, having to pass 42 individual tests prior to being boxed up and shipped out to customers, thus ensuring compliance with the most stringent quality and safety standards. In addition to this, they have been designed from the ground up be more “user-centric” in their usability, whilst remaining rugged, robust and ergonomic.

Technical specifications:

• Input voltage: 95V – 265V
• No load voltage: 67V
• Input current: 240V 10.4A / 110V 14.5A (varies somewhat, dependent on process)
• Rated input power: 240V 4.22kVA / 110V 2.98kVA (varies somewhat, dependent on process)
• Current range MIG: 110V 30A – 120A / 240V 20A – 160A
• Current range MMA: 110V 30A – 100A / 240V 20A – 140A
• Current range TIG: 110V 50A – 100A / 240V 5A – 160A
• Duty cycle (40 °C ambient temperature): 30% at 160A
• Wire feed speed range: 2M – 14M per minute
• Wire spool size: 5KG (200MM)
• Efficiency: 84%
• Power factor: 0.99
• Idle state power: <50W
• Protection class: IP23S
• Insulation class: H
• Dimensions: 565MM x 220MM x 415MM
• Weight: 16KG

Standard package includes machine, MIG torch, earth clamp, argon regulator & gas hose.
