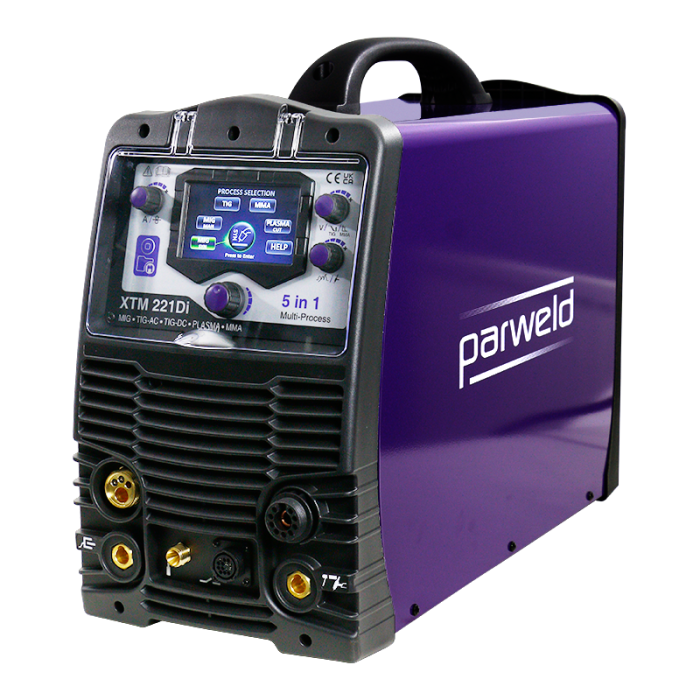

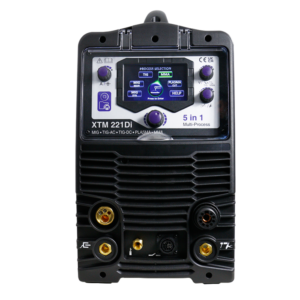

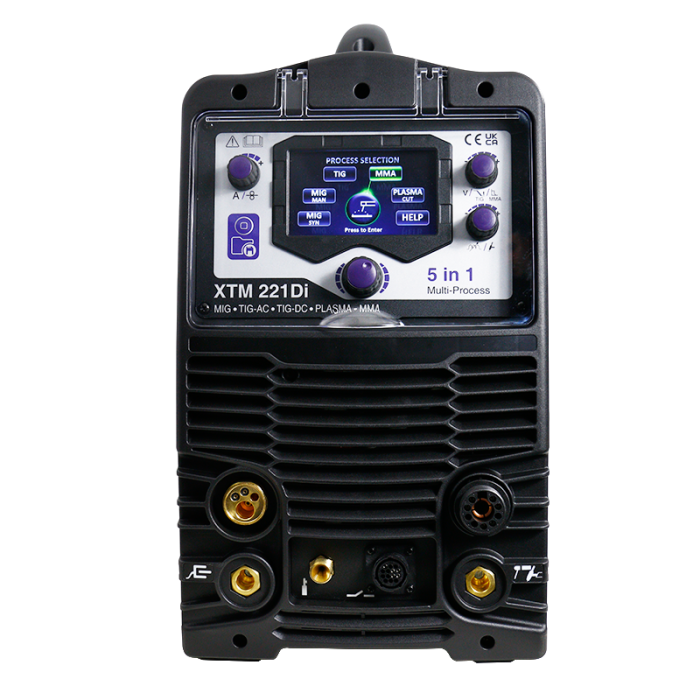

Parweld XTM 221DI 5 in 1 Multi Process Synergic MIG, AC/DC TIG Welder & Plasma Cutter – 110V/230V

Technical Specifications:

• Input voltage: 110V/230V
• Input current: 32A (110V) / 16A (230V)
• Output current MIG & TIG:  200 amps on 230V input voltage & 140 amps on 110V input voltage
• Output current MMA: 200 amps on 230V input voltage & 110 amps on 110V input voltage
• Output current Plasma: 40 amps on 230V input voltage & 25 amps on 110V input voltage
• Wire reel capacity: 15KG (300MM)
• Wire feed rollers: 4 roll
• Generator requirement: 7KVA
• Weight: 30KG
• Dimensions: 650MM x 275MM x 495MM

The Parweld XTM 221DI is capable of welding:

MIG Welding

• Up to 10MM thick mild / carbon steel
• Up to 10MM thick stainless steel
• Up to 6MM thick aluminium

TIG Welding

• Up to 6MM thick mild / carbon steel
• Up to 6MM thick stainless steel
• Up to 5MM thick aluminium

All of the above quoted thickness’ are based on single pass welding. Thicker materials can be welded with the use of multiple weld passes & suitable material preparation.

Packaging Contents

The P3 XTM 221DI package includes:

• 4 MTR Parweld Pro Grip MAX WP26 TIG torch with on-torch parameter control
• 3 MTR Parweld Pro Grip MB25 MIG torch with on-torch parameter
• 6 MTR Parweld XT4000 Plasma cutting torch
• 3 MTR earth lead with clamps
• 2 x Gas hose for TIG & MIG welding gases
• 1 x Air hose for plasma cutting
